The Sequential Roof
Digital assembly of a complex roof structure

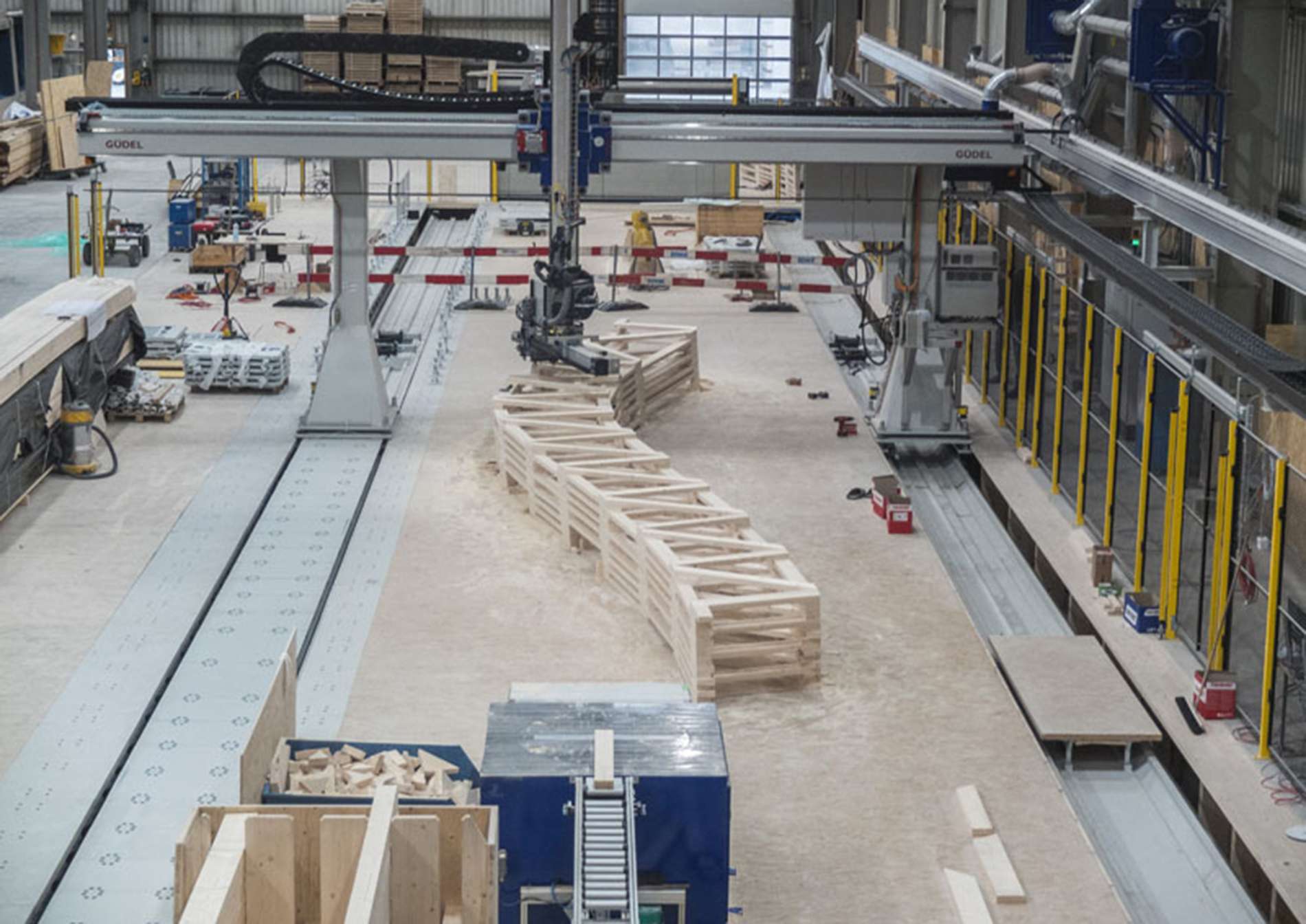

The Arch_Tec_Lab of the Institute of Technology in Architecture (ITA) is covered by a novel timber roof structure, developed and planned at the Chair of Architecture and Digital Fabrication. The structure consists of 168 single trusses – which are woven into a 2,308 square meter free-form roof design. An integrated digital planning process connects design, structural analysis and the generation of fabrication data. Based on this data, a robot-based assembly process of 48,624 timber slats to individually formed trussed beams allows an efficient fabrication of the complex roof geometry. The project demonstrates the potential of combining digital fabrication technology with timber as a local and sustainable building material. In collaboration with experts from academia and practice, the Chair's research results in the field of digital timber construction are being condensed and applied at full architectural scale. The Sequential Roof was planned by Arch-Tec-Lab AG and manufactured by ERNE AG Holzbau.
Status:
Completed
Completed
Location:
Zurich, Switzerland
Zurich, Switzerland
Year:
2016
2016
Academic Institution:
ETH Zurich, Architecture and Digital Fabrication, Prof. Gramazio, Prof. Kohler
ETH Zurich, Architecture and Digital Fabrication, Prof. Gramazio, Prof. Kohler
Consultants:
R-O-B Technologies AG, Institute of Structural Engineering - Prof. Andrea Frangi, Dr. Lüchinger + Meyer Bauingenieure AG, Estia SA, Chair of Structural Design, Prof. Joseph Schwartz, SJB.Kempter.Fritze AG
R-O-B Technologies AG, Institute of Structural Engineering - Prof. Andrea Frangi, Dr. Lüchinger + Meyer Bauingenieure AG, Estia SA, Chair of Structural Design, Prof. Joseph Schwartz, SJB.Kempter.Fritze AG
Lead Researchers:
Aleksandra Anna Apolinarska, Jaime de Miguel Rodriguez, Michael Knauß
Aleksandra Anna Apolinarska, Jaime de Miguel Rodriguez, Michael Knauß
Team:
Selen Ercan, Olga Linardou
Selen Ercan, Olga Linardou
